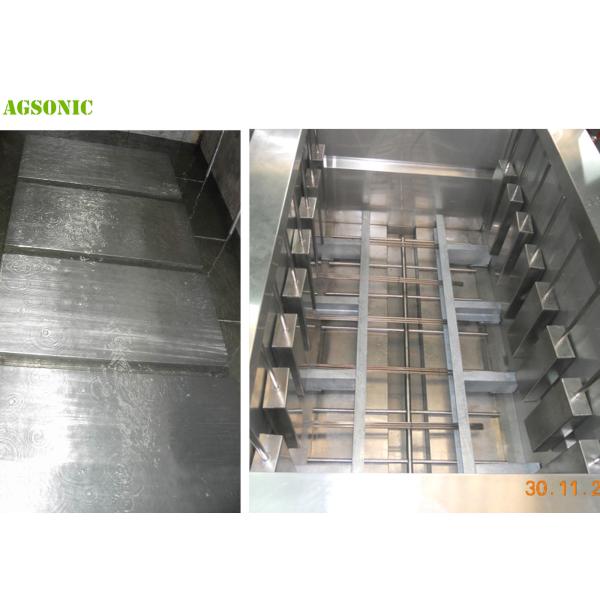

Flat Transducer Plates Are Installed Into The Side Wall Or Into The Bottom Of Existing Stainless Steel Tanks
Benefits of ultrasonic cleaning
Ultrasonic cleaning saves time and money:
· up to twenty parts can be cleaned at one time
· technology is simple to use and only requires one operator
· life of parts is extended due to gentle cleaning
· highly effective cleaning means all contaminants are removed in first round
For more than two decades, Ultrasonics International has helped businesses improve profitability by investing less time and fewer staff for their industrial cleaning needs. Our ultrasonic cleaners clean more thoroughly, efficiently and faster than other cleaning methods.
Specifications:
| Model | Material | Transducers | Estimated volume | Box size | Cable
lead-out | Ultrasonic frequency | Ultrasonic power |
| (mm) | (pcs) | (L) | (mm) | | (kHz) | (W) |
| TZ-1003 | SUS304/SUS316L | 3 | 15 | 250x150x100 | Rigid tube/
Flexible tube | 28/40 | 150 |
| TZ-1006 | 6 | 30 | 305x250x100 | 300 |
| TZ-1012 | 12 | 60 | 355x250x100 | 600 |
| TZ-1018 | 18 | 90 | 406x305x100 | 900 |
| TZ-1024 | 24 | 120 | 500x355x100 | 1200 |
| TZ-1030 | 30 | 150 | 550x406x100 | 1500 |
| TZ-1036 | 36 | 180 | 500x460x100 | 1800 |
Our immersible transducer is custom designed for your particular application and tank size. It can be incorporated into existing tanks of any size and converted it into ultrasonic tank. It is controlled by our unique Pulse Swept Pleasecontact us for specific information on how we can create one for your Immersible Transducer needs.
Immersible ultrasonic transducers are designed for use in new or existing cleaning tanks to improve the speed and effectiveness of rinsing cleaning and other processes. Single or multi- module units can be custom designed for tanks of any size.
Ultrasonic Immersible Transducers
Deep cleaning ultrasonic immersible transducers give you the ability to add the ultrasonic advantage to your existing cleaning application. We bond and wire the immersible transducer inside a durable stainless steel container, and seal it with a stainless steel lid. This gives you the ability to "drop-in" transducers to an existing tank or application.
Heavy duty 316L stainless steel- to insure long life and performance
Installation hardware included- to insure ease of installation
Immersible ultrasonic transducers do not require attachment to the tank (other than to hold them in position) to function efficiently. As a result, transducers can be moved from tank to tank and positioned as required for special applications when needed.
waves that generate ultrasonic energy.
Ultrasonic cleaning applications
Ultrasonic cleaners can also be customized to suit the specific needs of a factory, hospital or other businesses. With thousands of commercial and industrial cleaning applications, ultrasonic cleaning is widely used across many industries. Ultrasonic cleaners are tailored to the types of parts that they are cleaning. Table top and bench top cleaners, for example, are best for cleaning small or delicate parts like bearings, surgical instruments, optical parts, machined parts, small gears and carburetor components. Precision cleaning is used for cleaning and restoring delicate items that may have been damaged
Product Tags:
|
|
Flat Plates Submersible Ultrasonic Transducer With Existing Stainless Steel Tanks Images
|
